Overview of the [Export Barcodes] Function
Route: Batch Barcode Generator - [ Overview of the [Export Barcodes] Function ]After completing [Import Data] and [Edit Barcode], you can select a suitable barcode export method in the [Export Barcodes] module. Options include direct batch printing or Export Barcodesing of barcode files (e.g., images or PDF files containing multiple barcodes per page).
View All Barcodes
Generates all barcodes in bulk and displays them all for preview purposes.
Batch Print Barcodes (One barcode per page)
Directly connects to your locally connected printer to print all barcodes—one barcode per sheet of printing paper. This is ideal for label printers.
This function offers two printing modes:
- [Print in Adaptive Size]: The program automatically adapts to the printable size of your printer. No additional print size settings are required.
- [Print in Custom Size]: Requires manual specification of the print size. This is suitable for exporting vector PDF barcode files. When confirming the print settings, select [Export as PDF] for the [Target Printer] option.
Merge and Print Barcodes (Multiple barcodes on one page, fast layout)
Connects directly to the printer and prints all barcodes on a single sheet of paper. This mode requires minimal setup and automatically adapts to the paper size, making it ideal for large-format paper (e.g., A4 paper).
Merge and Print Barcodes (Multiple barcodes on one page with a balanced grid layout)
Connects directly to the printer. Set the number of rows and columns, and the program will automatically generate a print page with barcodes arranged in an even row-column layout. Suitable for large-format paper (e.g., A4 paper).
Merge and Print Barcodes (Multiple barcodes on one page with adjustable size settings)
Flexibly set the barcode size for the print page. The program automatically calculates the layout of barcodes per page for multi-barcode printing. Suitable for large-format paper (e.g., A4 paper).
Export as a ZIP (One barcode per file)
Exports all barcodes as individual files (available formats: SVG, PNG, PDF)—one file per barcode. All files are packaged into a single ZIP compressed folder.
Merge and Export as PDF (One barcode per page)
Exports all barcodes as a single PDF file, where each page of the PDF contains one barcode.
Merge and Export Barcodes (Multiple barcodes on one page with a balanced grid layout)
Merges and exports all barcodes, which are arranged in an even row-column layout (based on your settings) with multiple barcodes per page. Available export formats: SVG, PNG, PDF.
Merge and Export Barcodes (Multiple barcodes on one page with adjustable size settings)
Merges and exports all barcodes with flexible page layout settings (multiple barcodes per page). Available export formats: SVG, PNG, PDF.
Batch Export of Check Digits
Reads the barcode text from [Import Data], calculates the corresponding check digits, and exports the check digits as an Excel file.
Note: This function only supports the following 5 symbologies and their extended versions: EAN-13, EAN-8, UPC, UPCE, and ITF-14.
Additional Note on Barcode Size Settings

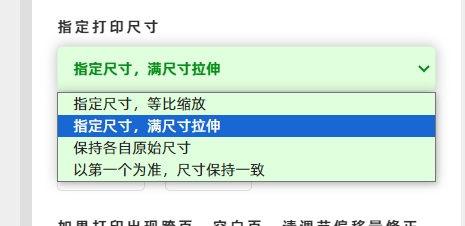

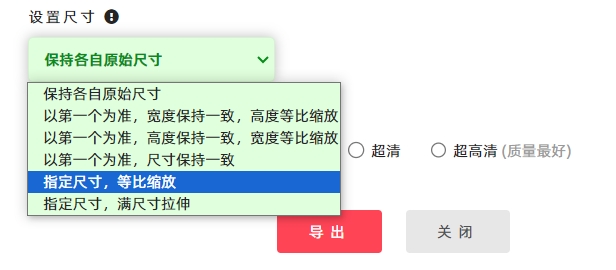

While you can set the barcode size in the [Edit Barcode] module, most export methods in [Export Barcodes] allow you to reconfigure the barcode export size (see the diagram below for an example).
